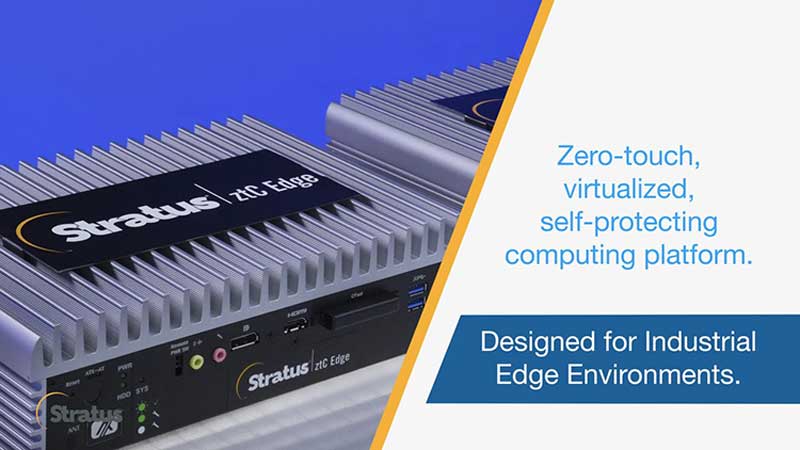

Raising the Bar on Computing Industrial Edge Environments

See the difference purpose-built, fully virtualized, and self-monitoring can make


With pre-installed virtualization, and automated application and data protection, ztC Edge simplifies and shortens the time it takes to modernize your machine’s computing system. Redundant, hot-swappable nodes that can be replaced by your customer save you time and effort.


ztC Edge’s self-monitoring and self-protecting capabilities make it ideal for unmanned stations, or remote locations with limited IT resources. Because it takes care of itself, IT has more time to focus on other priorities and value-added activities.


ztC Edge’s virtualization host software can be updated on a running system (without requiring a system reboot), thus reducing planned downtime. Its self-monitoring and self-protecting features help reduce unplanned downtime as well.

Transformation of the Edge: Architecting your computing infrastructure for performance and reliability

This white paper offers a closer look at edge computing and defines the evolution that is taking place in edge computing today while demonstrating how next-generation solutions can help industries execute on the new opportunities offered by the transformation of the edge.

Download the white paper

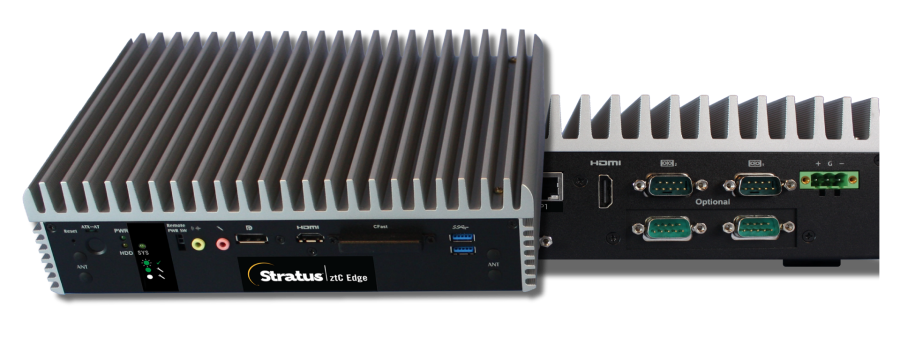

Redundant, virtualized, industrial computing for remote, embedded, and harsh environments

Technical Specifications

Operating System Stratus Redundant Linux with Virtualization & HA (preloaded)
Supported Guests Microsoft Windows Server (2012 R2 & 2016) and
Linux variants
Availability System redundancy
Seamless recovery from system failure
Automatic second site failover (deployment option)
Installation Customer installable
DIN rail, wall mount
Performance Virtualization: up to 3 VMs
Processor: Intel Core i7, 4 hyper threaded cores
Memory: 32 GB
Storage: 512 GB SSD
Ethernet: 1GbE, 4 ports (2 available)
USB: 2 x USB 2.0
Environmental Fanless, solid state design
Operating temp: 0 to 50°C (32 to 122°F)
Humidity: 10 – 95% (non-condensing)
Vibration: 3 Grms (5-500 Hz)
Dimensions 280 mm (11.02 in) x 190 mm (7.48 in) x 76 mm (2.99 in)
Weight 4.6 kg (10.2 lbs)
Power 9 to 36 volts DC; 35 watts
Request a Demo
Availability and
virtualization built in
Self-protecting and
monitored by Stratus
Installed in
under 30 minutes
No IT or
data room
